Current Location:Home > Product Center > Welding Equipment Series > Ordinary rubber wheel
Share to:

Ordinary rubber wheel
  Ordinary rubber wheel: rubber wheel is used as the roller, and steel wheel structure is added on both sides. The rubber wheel improves the stability and driving ability of the transmission; the steel wheel can effectively protect the rubber wheel and improve the service life.
The rubber wheel is made of natural rubber, vulcanized, shot blasted before the combination of the wheel core and rubber, and formed by pressing film with 100t press (generally, the rubber is used by the manufacturer), so as to ensure the service life of the rubber wheel.



1.jpg 2.jpg

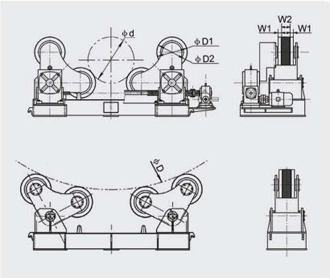

Single drive welding roller frame

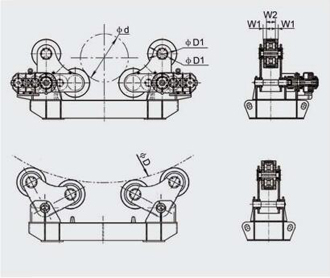

Double drive welding roller frame



Main technical parameters
Specification type HGZ-5 HGZ-10 HGZ-20 HGZ-40 HGZ-60 HGZ-80 HGZ-100
Maximum load capacity 5 10 20 40 60 80 100
Polyurethane wheel diameter D1 250 300 350 400 450 450 500
width W 100 120 150 160 180 240 240
Barrel diameter Minimum d 250 320 500 600 750 850 1000
Maximum D 2500 3200 3800 4500 5000 5500 6300
Roller linear speed 6-60 6-60 6-60 6-60 6-60 6-60 6-60
Motor power Single drive 0.75 1.1 1.5 3 4 4 5.5
Double drive / / / 2x1.5 2x2.2 2x3 2x3
Speed regulation mode Variable current variable frequency stepless speed regulation

*Note: the specific parameters shall be determined according to the user's requirements.
