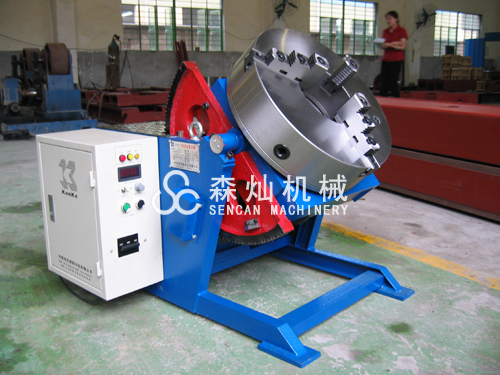

Current Location:Home > Product Center > Welding Equipment Series > 80kg positioner with chuck
Share to：

The welding positioner is generally composed of the rotary mechanism and the reverse mechanism of the worktable. Through the lifting, turning and turning of the worktable, the workpieces fixed on the worktable can reach the required welding and assembly angle. The rotation of the worktable is variable frequency stepless speed regulation, which can achieve satisfactory welding speed. Because of the eccentricity and center of gravity distance, the larger model should be selected for the workpiece with longer workpiece and cheaper center of gravity position. The standard welding positioner can not meet all the workpieces. Please provide the shape and weight of the workpieces to be processed and the processing technology when selecting. The company will provide a suitable scheme for reference.
Main technical parameters
Specification type Rated load Slewing speed Reverse Speed flip angle Table dimension D Power of slewing motor Power of turning motor Speed regulation mode Maximum eccentricity Maximum center of gravity distance
HBJ-01 100 0.4-4 Manual 0-90 Ф400 0.18 /

AC frequency conversion

Stepless speed regulation

 100 200
HBJ-03 300 0.1-1 Manual 0-90 Ф600 0.18 / 150 200
HBJ-03 300 0.1-1 1 0-90 Ф600 0.18 0.18 150 200
HBJ-06 600 0.09-0.9 0.42 0-90 Ф1000 0.75 0.75 150 200
HBJ-12 1200 0.05-0.5 0.4 0-120 Ф1200 1.1 1.1 200 250
HBJ-30 3000 0.05-0.5 0.23 0-135 Ф1400 1.1 2.2 200 300
HBJ-50 5000 0.05-0.5 0.2 0-135 Ф1500 1.5 3 200 300
HBJ-100 10000 0.05-0.5 0.2 0-135 Ф2000 3 4 200 400
HBJ-150 15000 0.04-0.4 0.15 0-135 Ф2200 4 7.5 200 500
HBJ-200 20000 0.04-0.4 0.15 -45-90 Ф2500 5.5 11 200 600
HBJ-300 30000 0.03-0.3 0.15 -45-90 Ф3000 5.5 15 200 650
HBJ-500 50000 0.02-0.2 0.06 -45-90 Ф4000 11 18.5 200 800
