Current Location:Home > Product Center > Welding Equipment Series > 5T double seat welding positioner
Share to:

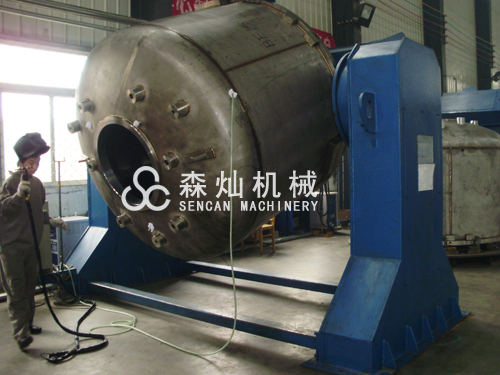

5T double seat welding positioner


Main technical parameters

Specification type Rated load  Slewing speed Reverse Speed flip angle Table size Power of slewing motor Power of turning motor Rotary speed regulation mode Maximum eccentricity Maximum center of gravity distance
(kg) (rpm) (rpm) (°) (mm) (kw) (kw) (mm) (mm)
TWS-50 5000 0.05-0.5 0.2 0±90 Ф2500 3 2*2.2 AC variable frequency stepless speed regulation 200 600
TWS-100 10000 0.05-0.5 0.1 0±90 Ф2500 4 2*3 200 600
TWS-200 20000 0.04-0.4 0.1 0±90 Ф3000 5.5 2*5.5 200 1000
TWS-300 30000 0.03-0.3 0.1 0±90 Ф3500 7.5 2*7.5 200 1500
TWS-500 50000 0.02-0.2 0.1 0±90 Ф4000 11 2*11 200 2000
TWS-1000 100000 0.01-0.1 0.1 0±90 Ф4000 18.5 2*15 200 2500

*Note: the specific parameters shall be determined according to the user's requirements.
